How to Build Clear, Scalable, and Maintainable Salesforce Flows

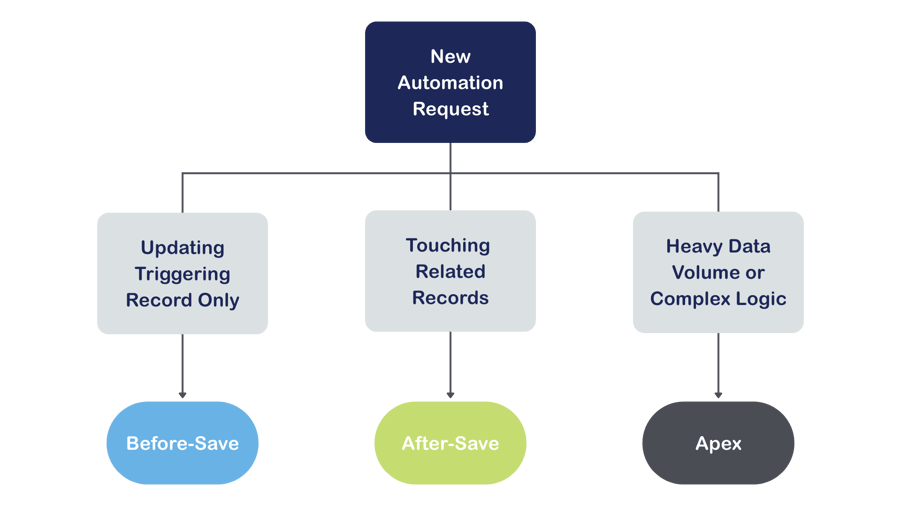

Start with Flow. It is the platform standard. If the requirement:

• Involves heavy data volumes

• Requires long-running or compute-intensive logic

• Needs specialized external integrations

• Pushes against Flow limits

Then consider Apex, or an invocable Apex action called from Flow.

Important Note: Workflow Rules and Process Builder are retired technologies. Do not start anything new there.

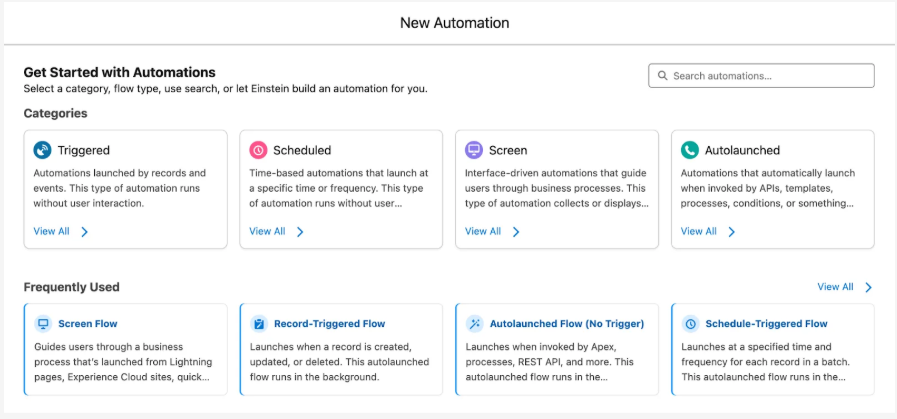

Common Flow Entry Points

Flows can be invoked in several ways:

• Record-Triggered (create, update, delete)

• Screen / Quick Actions (user-initiated via button/screen)

• Scheduled Flows (batch operations on a defined cadence)

• Autolaunched Flows (called from Apex, other flows, or processes)

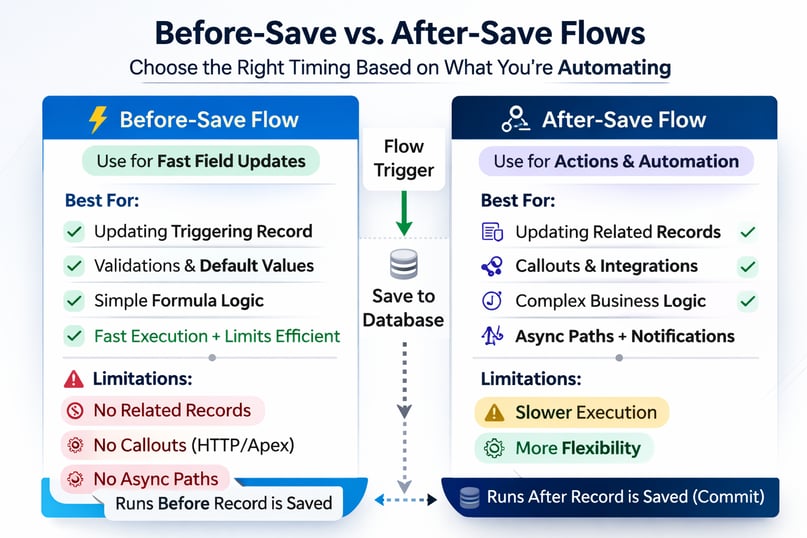

Before-Save vs. After-Save (and When to Subflow)

Before-Save (Fast Field Updates)

Use before-save flows when you are only updating the triggering record. They are:

• Faster

• More limit-efficient

• Ideal for deterministic field updates and simple logic

If you don't need related records, stay here.

After-Save

Use after-save flows when you need to:

• Update related records

• Call Apex or HTTP integrations

• Perform more complex orchestration

Combine after-save flows with Asynchronous Paths to defer heavy or non-critical work until after the transaction commits.

Subflows: Powerful, But Use with Intent

Subflows are valuable when:

• The logic is reused across multiple flows

• You want to isolate a unit of logic that can be independently tested

Examples:

• Standardize Phone

• Post to Chatter

• Enrich Address

Avoid creating a maze of subflows where understanding behavior requires opening five canvases. That becomes a maintenance burden.

Rule: Default to a single, well-structured flow. Extract to a subflow only when it meaningfully improves reuse or isolates a unit of logic you can test independently.

Design for Scale (Governor Limits Are Real)

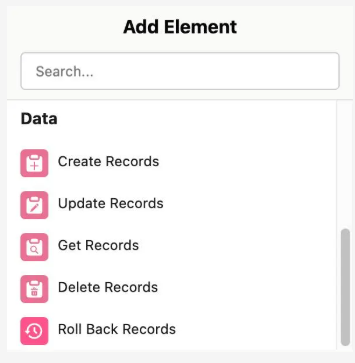

Know your most expensive enemies: the “pink” elements

In Flow Builder, data elements appear in pink, (Get, Create, Update, and Delete). These are the most resource-intensive operations in your flow. Treat them as if they have a cost attached, because from a governor limit perspective, they do.

Patterns to Follow

• Leverage relationships already on the triggering record before querying again (e.g., you already have AccountId on Opportunity, so don’t query for it)

• Batch your updates: collect records into a variable and perform one Update

• Offload expensive work to Asynchronous Paths when possible

Patterns to Avoid

• Data Manipulation Language (DML) or queries inside loops

• Excessive, redundant "Gets" when a field is already available

Transform > Loops

If you need to derive a new collection from another, use Transform instead of looping. For example: Converting Opportunities into a collection of Account IDs. Transform is more efficient and aligns with Salesforce best practices.

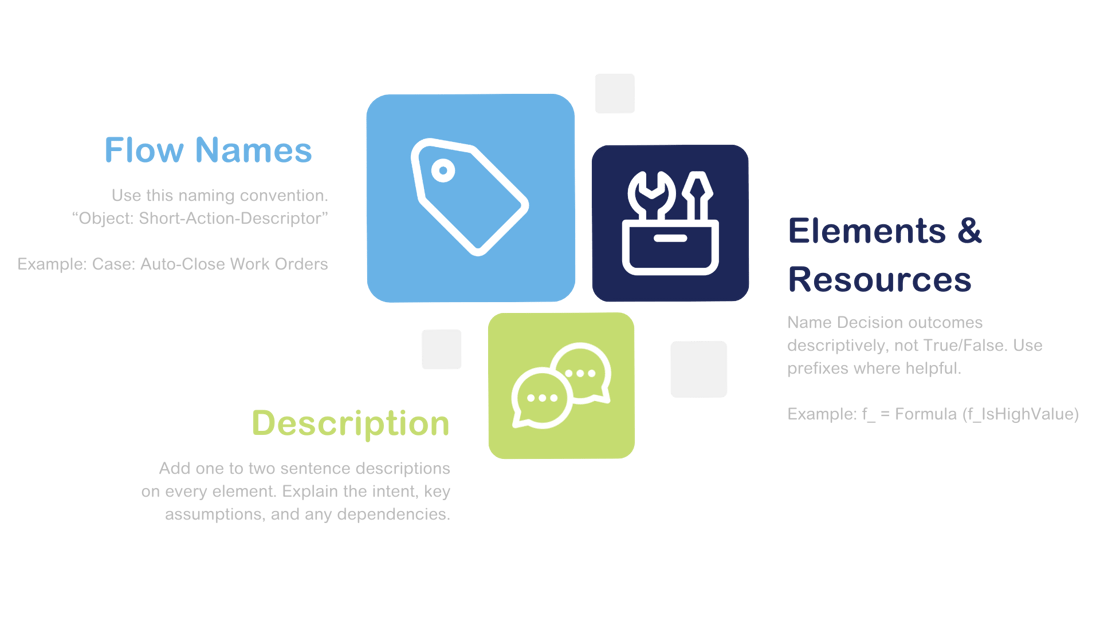

Naming Conventions & Documentation (Your Future Self Will Thank You)

Clear, consistent naming makes your flows easier to understand, update, and troubleshoot. It may feel unnecessary today. It will save hours later.

Designing for Flexibility and Reuse

Scalable flows are not just limit-safe. They are adaptable. Requirements change. Record types evolve. New business lines are introduced. Good automation absorbs change instead of breaking under it.

Avoid Hard-Coding (Make Change Easy)

Hard-coded values make automations brittle. They work today, but they break quietly when business rules evolve. Instead, design for flexibility:

• Formulas create dynamic logic and minimize future edits

• Custom Metadata acts as admin-managed configuration tables, ideal for thresholds, mappings, and rule logic

• Custom Labels store text and IDs, prevent hard-coding, and support translations

• Custom Permissions allow you to toggle features or bypass logic for specific user groups


Pro tip: Centralize values such as record type IDs, status codes, and API names in Custom Labels or Custom Metadata. Update once and benefit everywhere.

Invoked Actions & Component Libraries

Sometimes, Flow is not the most efficient place for heavy logic.

Invocable Apex is ideal for:

• Complex SOQL (Salesforce Object Query Language)

• Large-batch DML

• Specialized security logic


In larger orgs, shared invocable libraries:

• Reduce duplication

• Improve performance

• Standardize behavior


This is about reuse and architectural consistency.

Get Records (Field Choice & Empty Checks)

Even small configuration decisions can impact performance and maintainability.

All fields vs. specific fields: Selecting All fields can reduce upfront configuration effort. However, Salesforce only materializes fields that are referenced later in the flow. If a field is needed solely for a message, screen display, or downstream logic, make sure it is explicitly referenced so it is available at runtime.

Check for results: Use Is Empty on the returned record or collection to determine whether results were found. This approach provides clearer, more readable, and more reliable results than older comparison patterns.

Once your flow is scalable, the next question is: will it survive change?

Operating and Supporting Your Flows in Production

Building a flow is only half the job. The real test begins after deployment. In production environments, automations must handle real users, real data volumes, security constraints, and unexpected edge cases. Designing for supportability, governance, and operational stability is what separates working flows from enterprise-grade automations.

Run-As & Security Context

Always understand the context in which your flow executes.

• Record-Triggered and Screen Flows run as the invoking user by default

• Scheduled Flows run as the process automation user

• Some flows can run in System Context, bypassing object- and field-level security

System context is powerful, but it should be used intentionally and documented clearly. It can allow actions that users would not normally be permitted to perform.

Guardrails: If a user should not be able to perform an action manually, think carefully before allowing a flow to perform it implicitly.

Security behavior should never be accidental.

Data Loads, Bypasses & Scheduled Work

Enterprise orgs regularly perform large data operations. Your flows must account for that reality.

Bypass Patterns

Common approaches include:

• Entry criteria or decision logic driven by a Custom Permission or Custom Metadata flag

• Temporary deactivation during major data loads, used as a last resort and carefully coordinated

Bypasses should be designed deliberately. Control, audit, and reverse them as needed.

Scheduled and Asynchronous Processing

For Scheduled Flows:

• Keep batch sizes small

• Keep logic efficient

• Smaller batches often reduce runtime errors and limit collisions

For record-triggered flows, use Asynchronous Paths to defer non-critical work. This reduces transaction spikes and helps avoid governor limit conflicts in high-volume environments. Think in terms of transaction health, not just functionality.

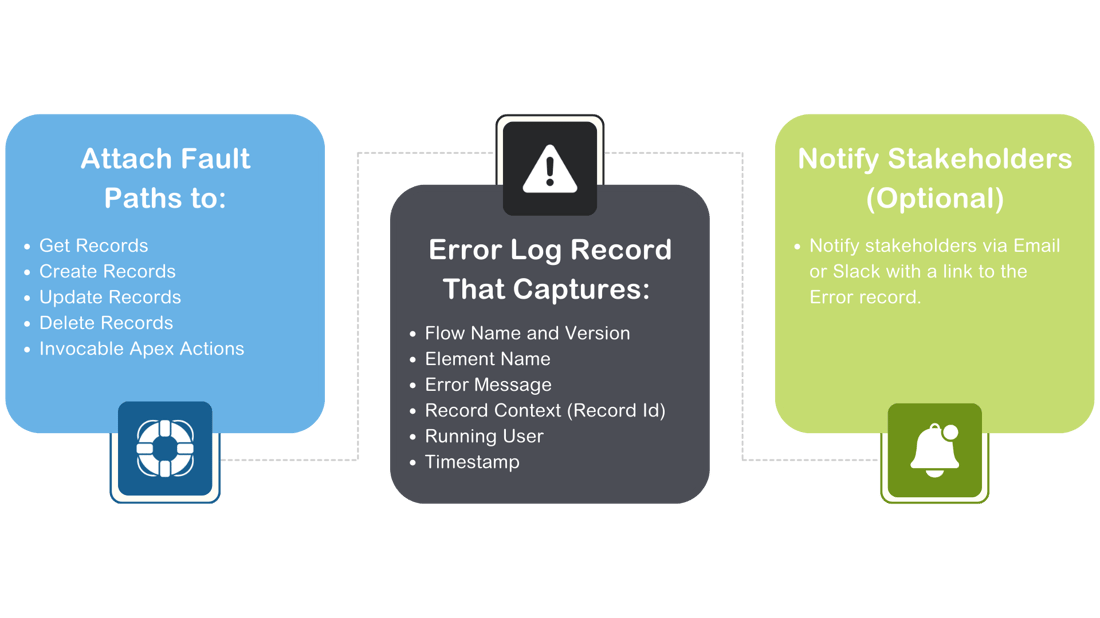

Error Handling & Observability

If your flow fails silently, it is not production-ready. Fault paths give you a second chance to do the right thing when something fails.

This is especially critical in enterprise environments where builders and production support teams are different people. Visibility reduces downtime.

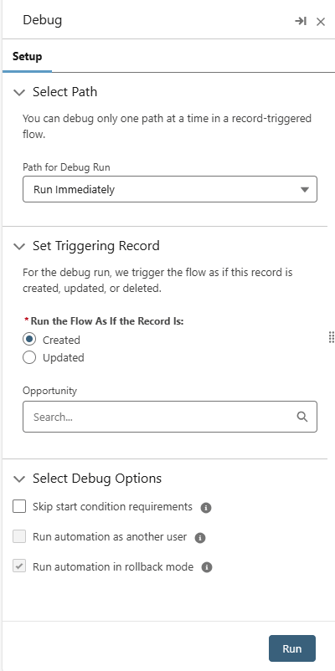

Debugging That Actually Works

Even well-designed flows require troubleshooting. Start with the standard Flow Debugger.

If formulas behave unexpectedly:

• Use Assignment elements to capture intermediate values into temporary debug variables

• Surface those values during testing to validate logic

For Screen Flows:

• Test using the actual target profile or permission set

• Confirm behavior under real-world access constraints

Effective debugging is structured, not reactive.

Versioning & Dependencies

Flow versions accumulate quickly. You'll hit 50 sooner than expected.

Production discipline includes:

• Periodically pruning inactive versions

• Keeping a limited number of prior versions for rollback

• Testing methodically when modifying dependent components

Salesforce dependency warnings are helpful, but not comprehensive. When making structural changes:

• Move incrementally

• Test after each adjustment

• Validate impacted automations

Version management is part of lifecycle governance.

Approvals with Flow

Flow-based approvals are increasingly common, but they should follow the same enterprise principles:

• Centralize approval logic

• Avoid hard-coded routing rules

• Monitor limits carefully

• Test with real user permissions and security constraints

Approval automation is powerful, but complexity scales quickly. Design for clarity and observability from the start.

Example Blueprint: Putting It Together

Scenario: When a Case is closed, close all related Work Orders and log a summary:

1. Record-Triggered Flow on Case, after-save, when Status changes to Closed.

2. Get Records: Related Work Orders (filter by Status != Closed).

3. Transform: Work Orders to collection of Work Orders with Status = Closed (or prepare a collection variable for update).

4. Update Records (once, on the collection).

5. Async Path: Create a Summary record and send notification.

6. Fault Paths on the Get/Update to create Error Log entries.

Note: If closing Work Orders requires logic that varies by product line, consider Custom Metadata to map Case Category to Work Order rules instead of hard-coding.

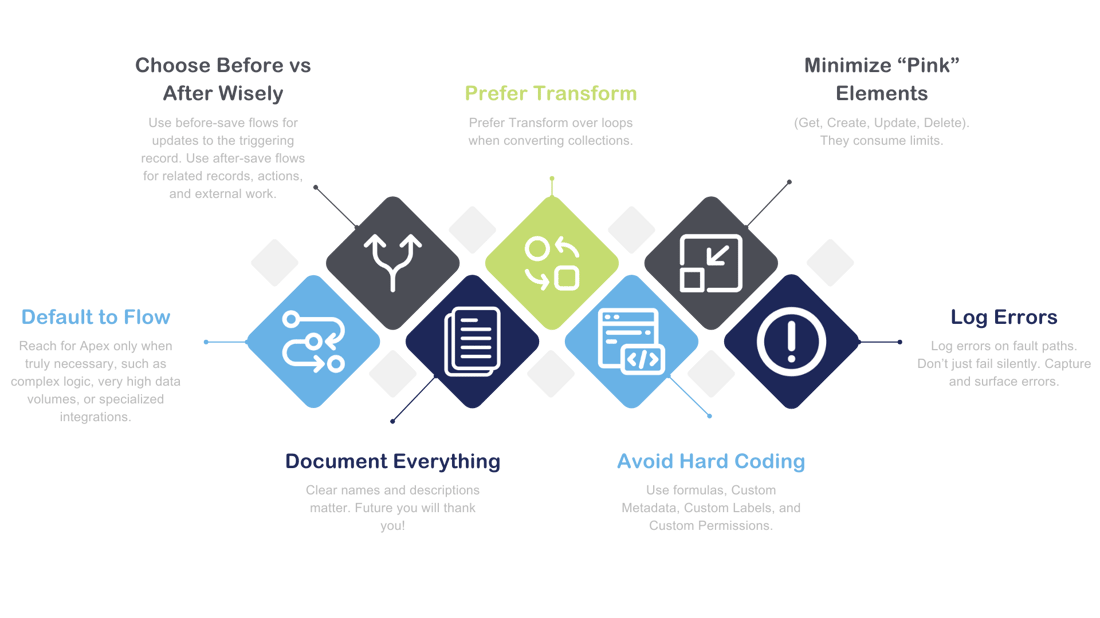

Final Thoughts

Great flows are not just working automations. They are clear, scalable systems that other admins and architects can understand immediately. If you:

• Choose before-save and after-save intentionally

• Control pink elements

• Prefer Transform over loops

• Document consistently

• Avoid hard-coded values

• Design for production support

You’ll build automations that run fast today and stay maintainable tomorrow.
